Wilesco D12 Stationary Steam Engine

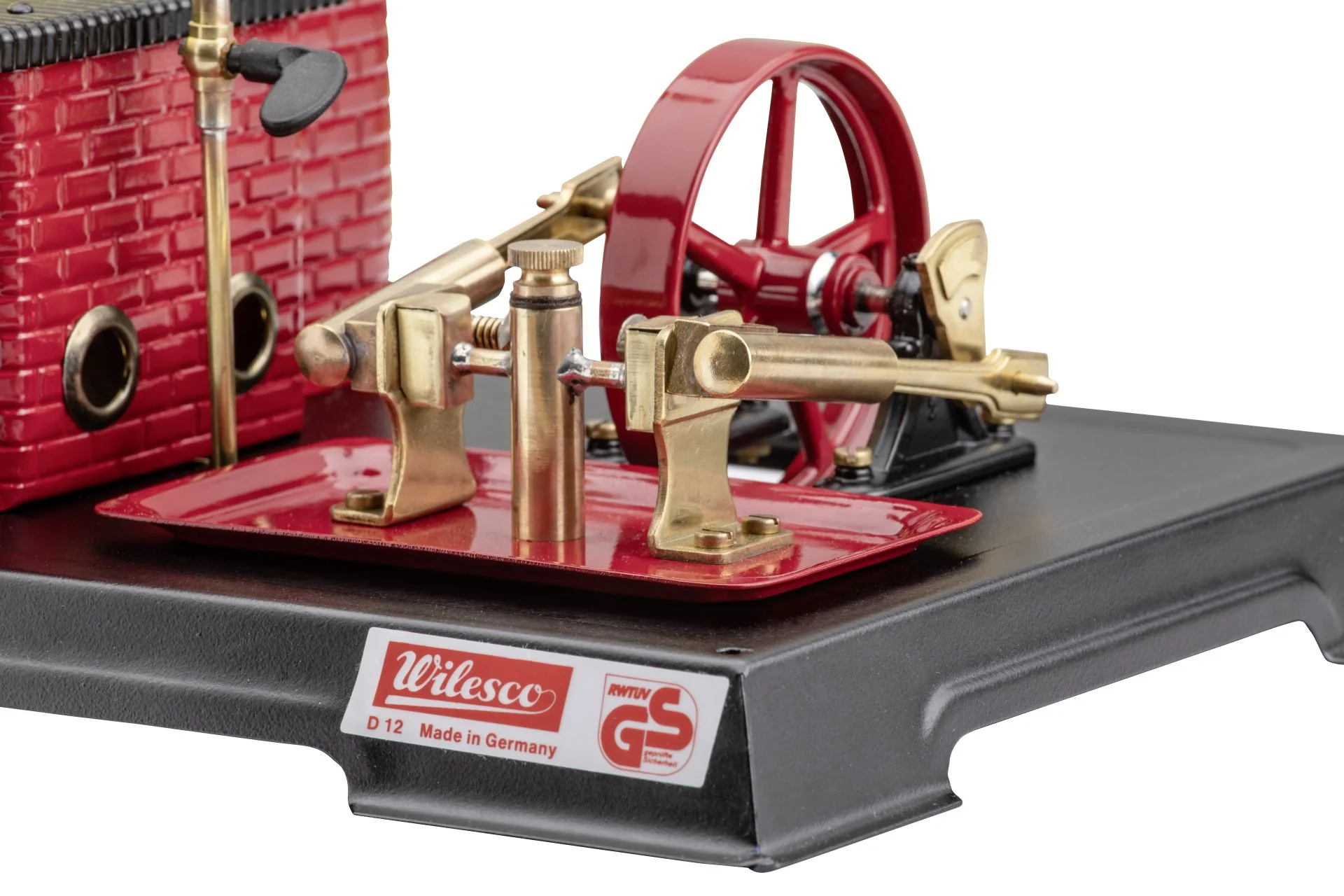

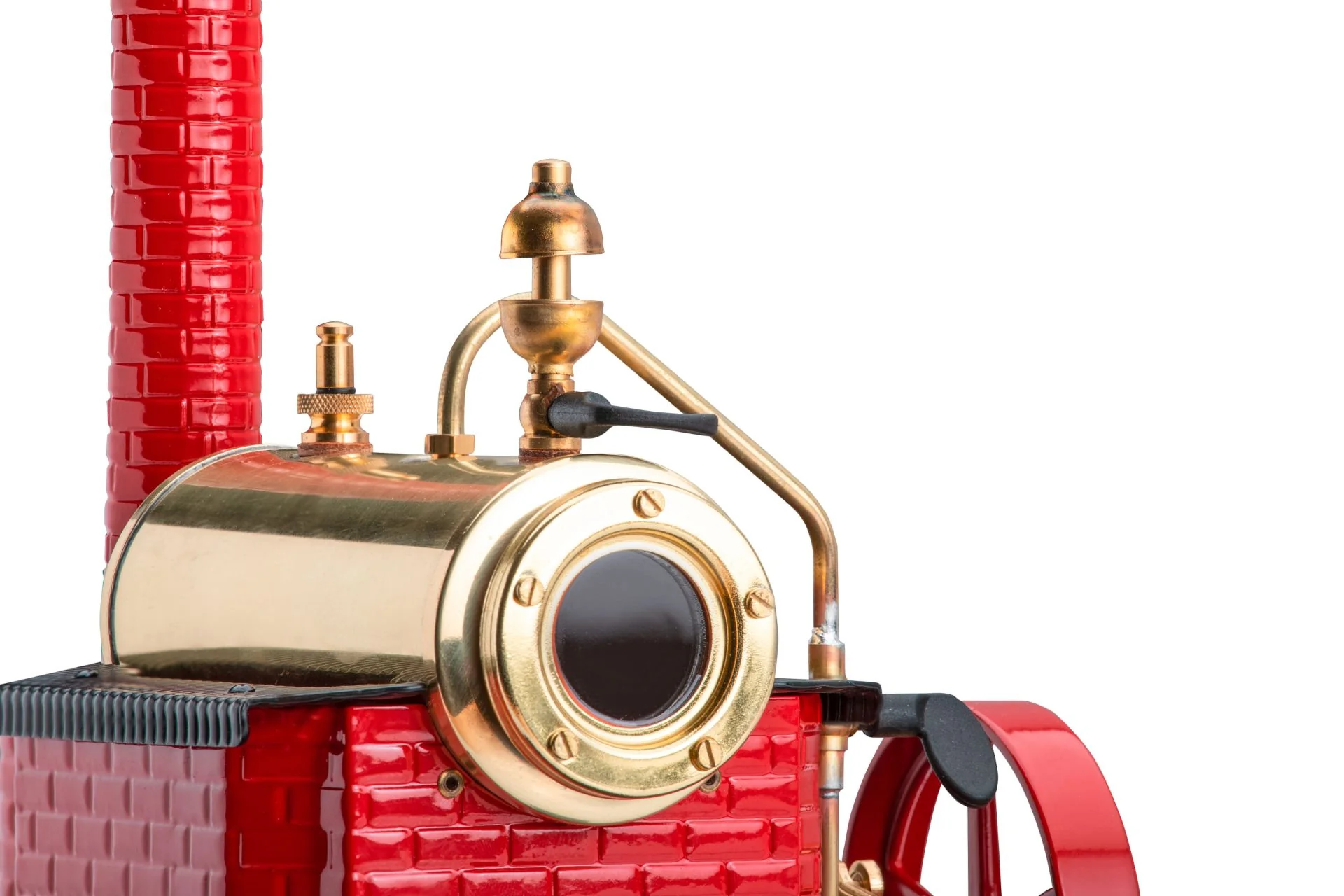

The smallest steam engine with two oscillating cylinders the D12 has the nickname "the wild thirteen" at Wilesco. This small powerhouse has a brass boiler and two oscillating cylinders, which are also in brass. The distributor block in the centre distributes steam to the two cylinders. The block also serves as the central point for oil. The black base plate and the red boiler house create a classy overall impression.

Features

• Boiler length: 115 mm, Ø 45 mm
• Steam shut-off valve and steam lubricator
• Twin, oscillating cylinders
• Regulator for controlling engine speed
• Attractive black base and red boiler house, chimney and flywheel.
• Brass boiler and motion work.
• Made in Germany, GS marked by TÜV Nord

Specification

Boiler Capacity	155cc
Fuel	Wilesco Fuel Gel
Runtime	Approx. 10-15 minutes
Wilesco Power Output Rating	6 - What does this mean?
Kit or Preassembled?	Preassembled
Drive (mobile only)	N/A
Colour Scheme	Red/Brass/Black
Weight	1.3 kg
Flywheel Diameter	70mm
Pressure release valve?	Yes
Whistle?	Yes
Pressure gauge?	No
Water sight glass?	Yes
Dummy Governor?	No
Number of Cylinders	Two (oscillating)

Included in the box…

1x D12 live steam model steam engine, 1x water funnel, 1x sachet of steam oil, 1x Burner tray suitable for gel, 1x Wilesco Fuel Gel 100ml, manual for safe operation (English included).

This product is a detailed live steam model for adult collectors. Not suitable for children under 14 years.
