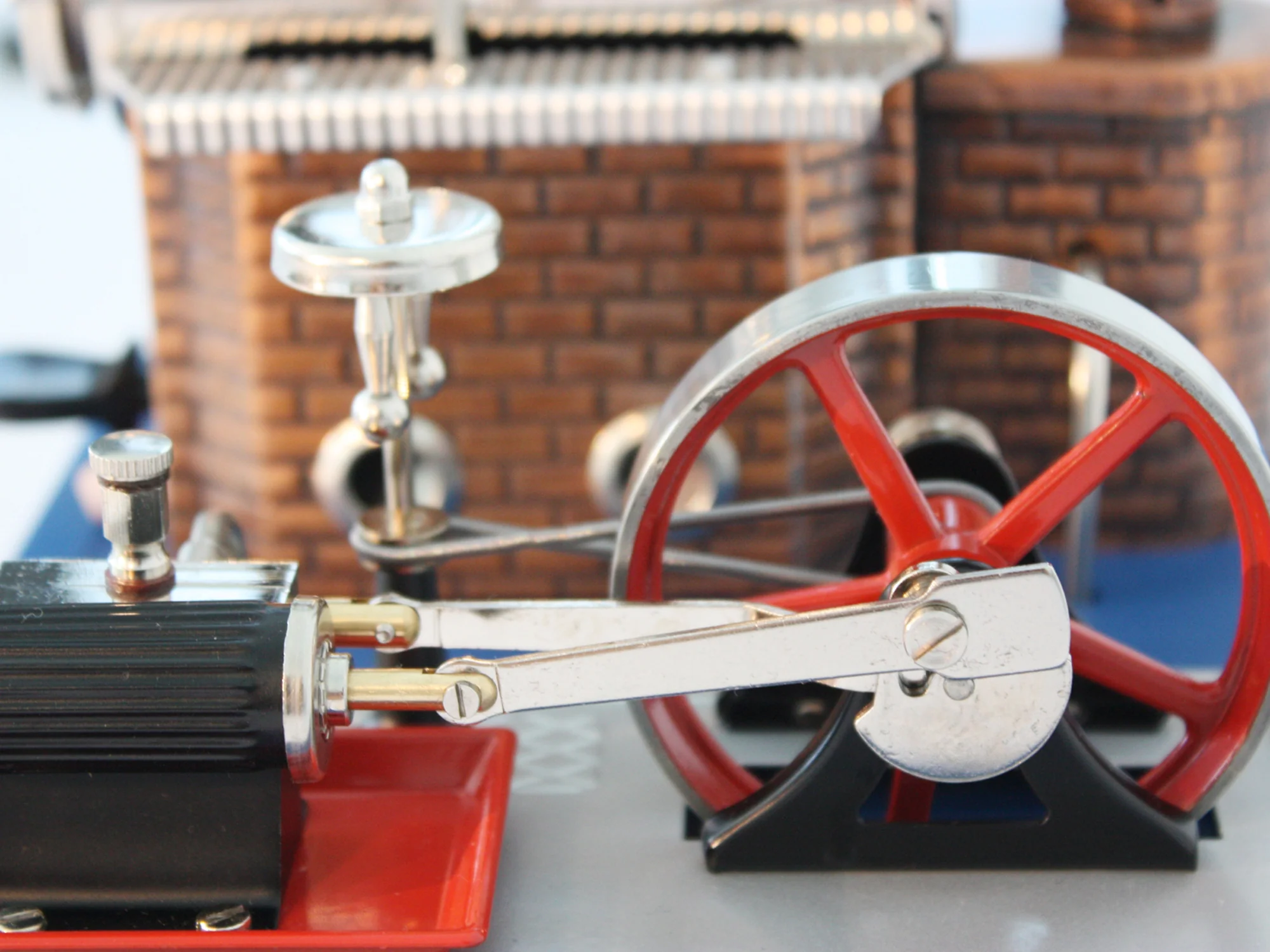

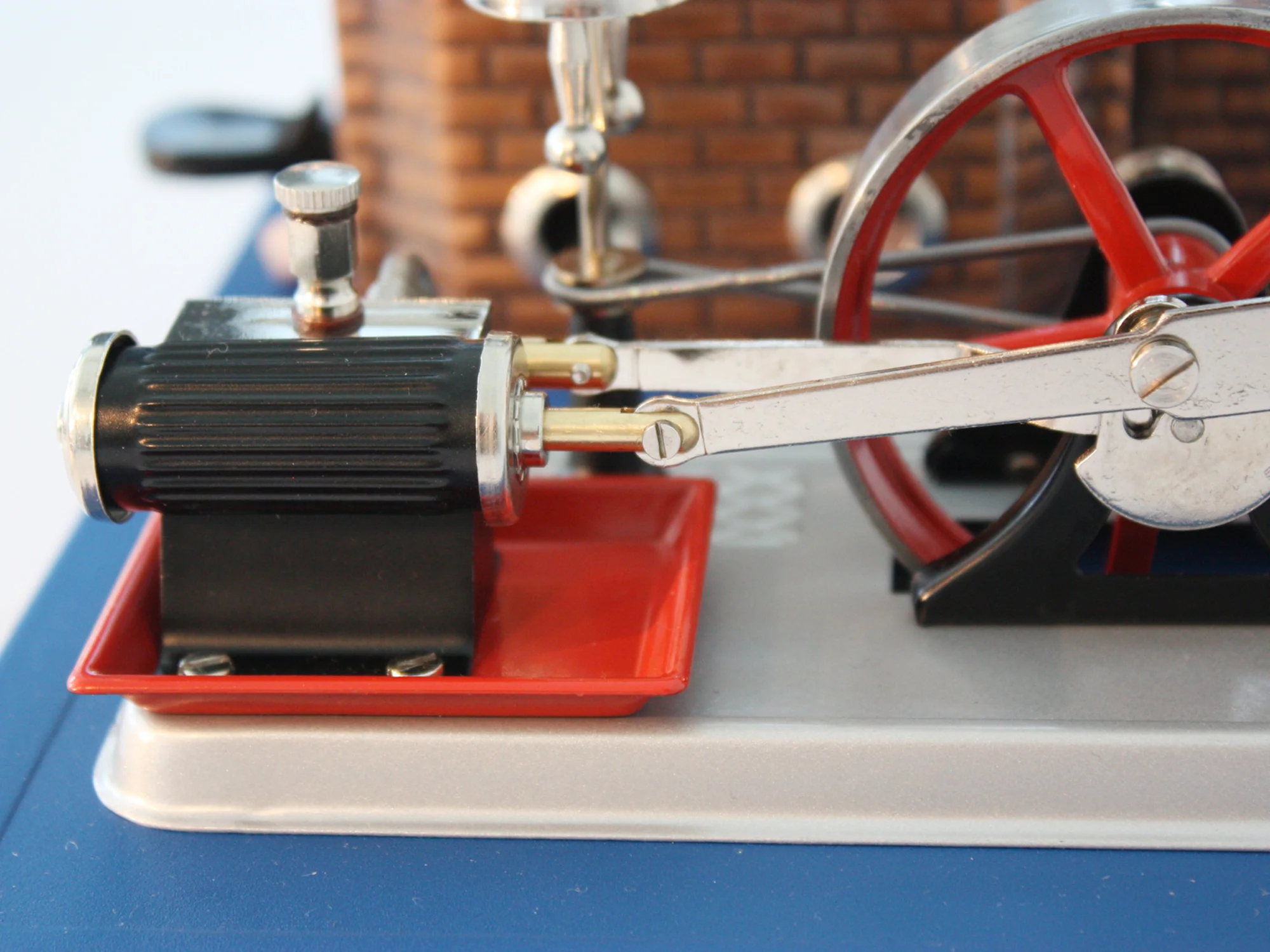

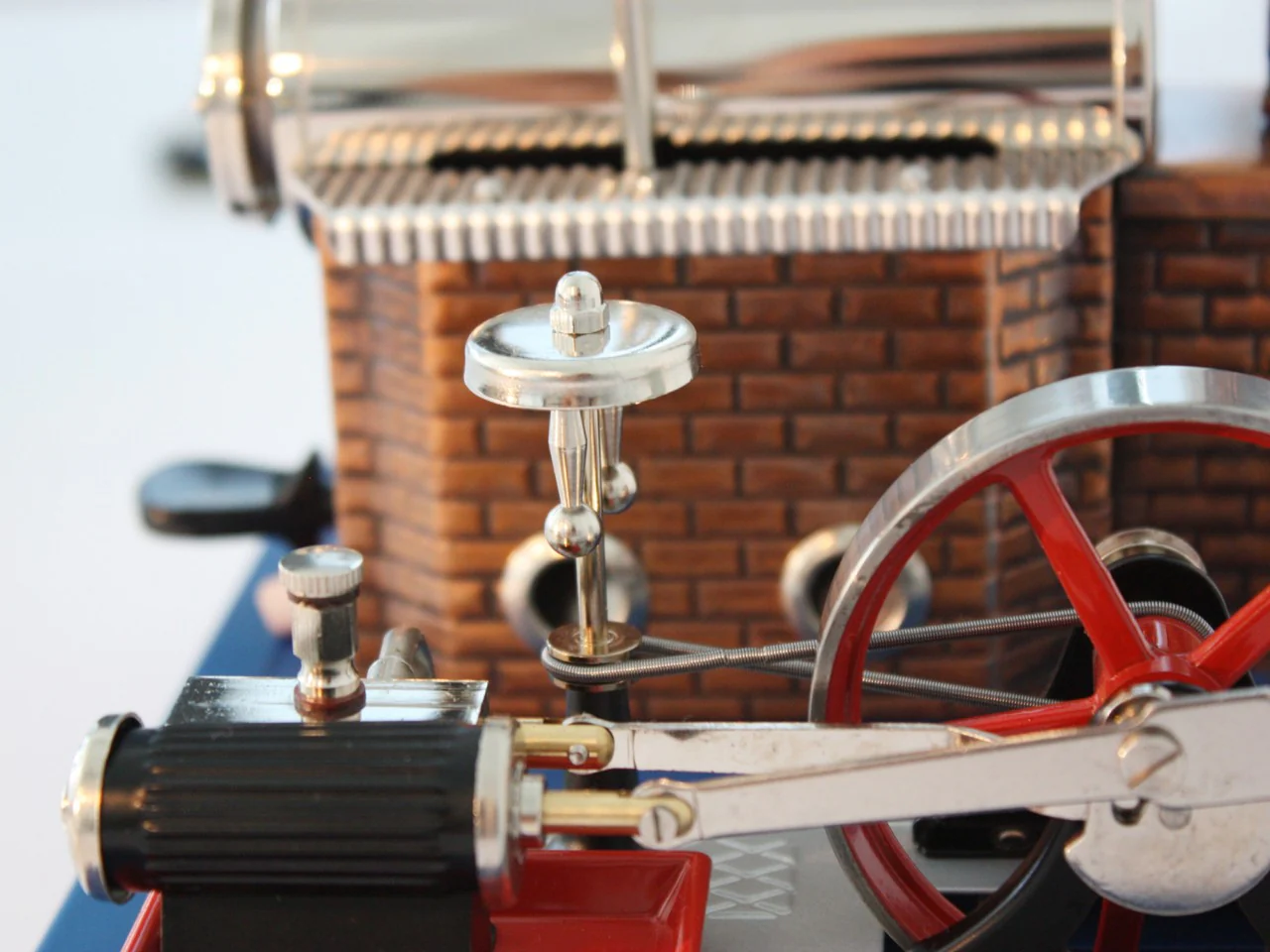

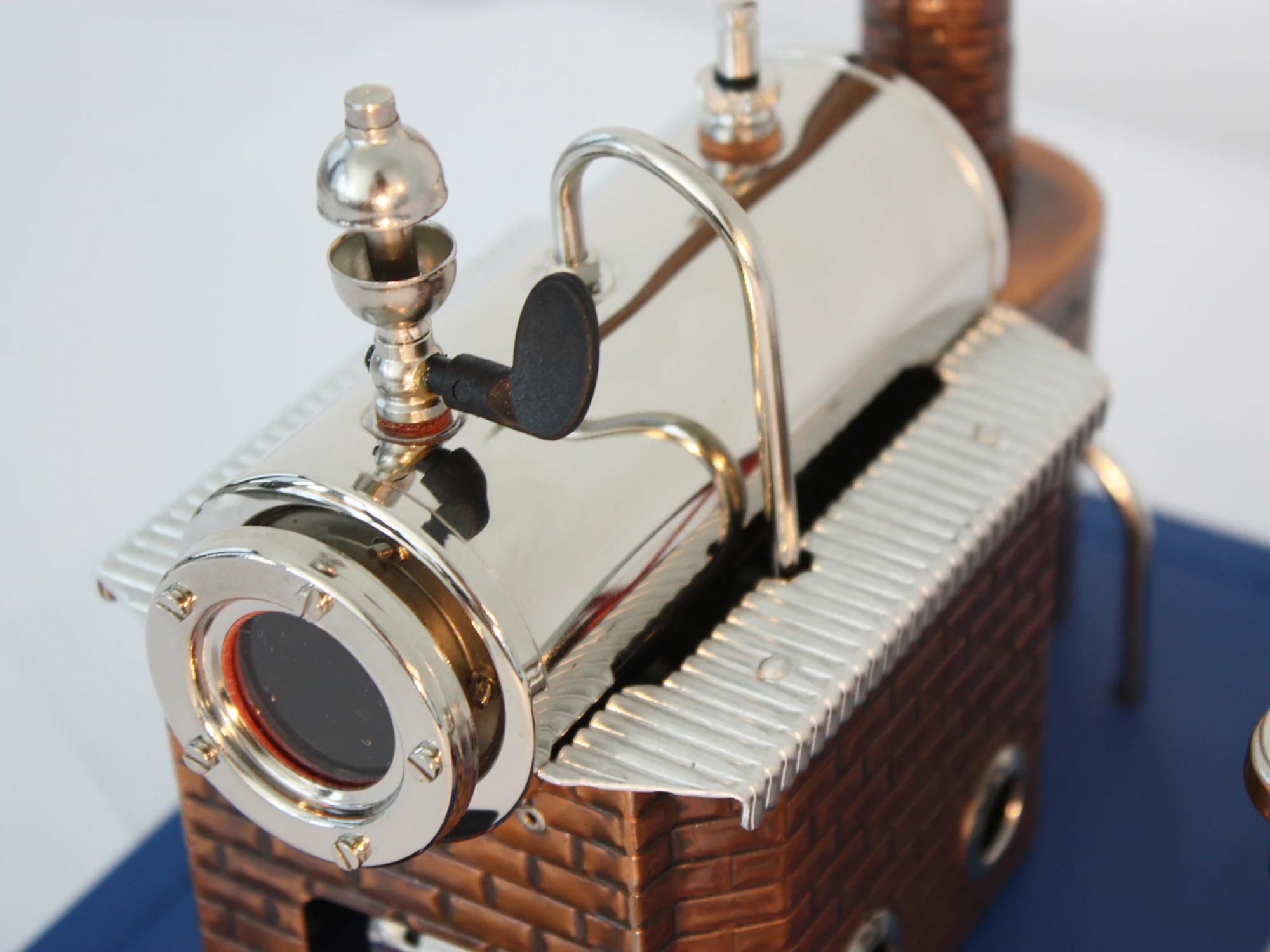

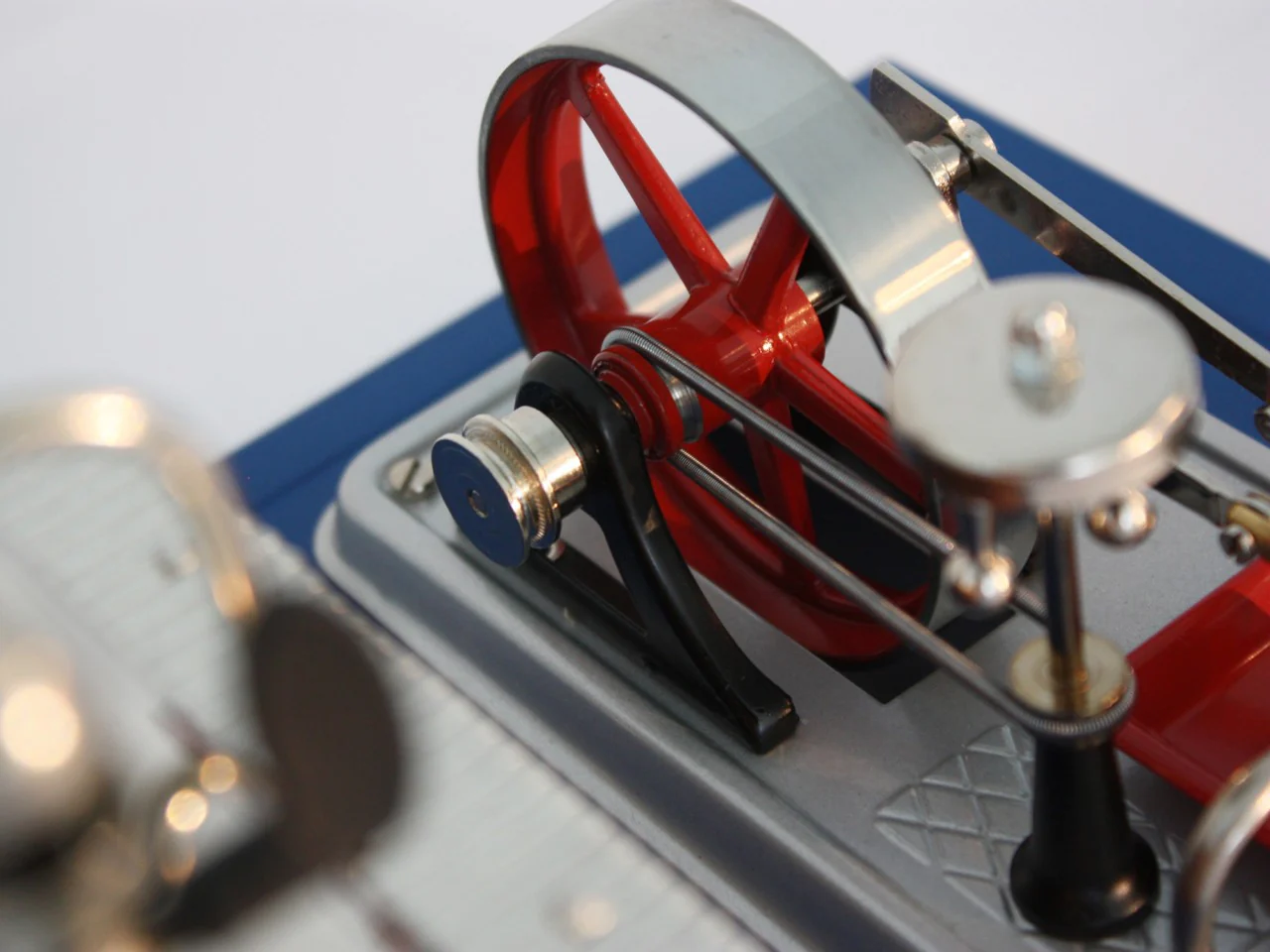

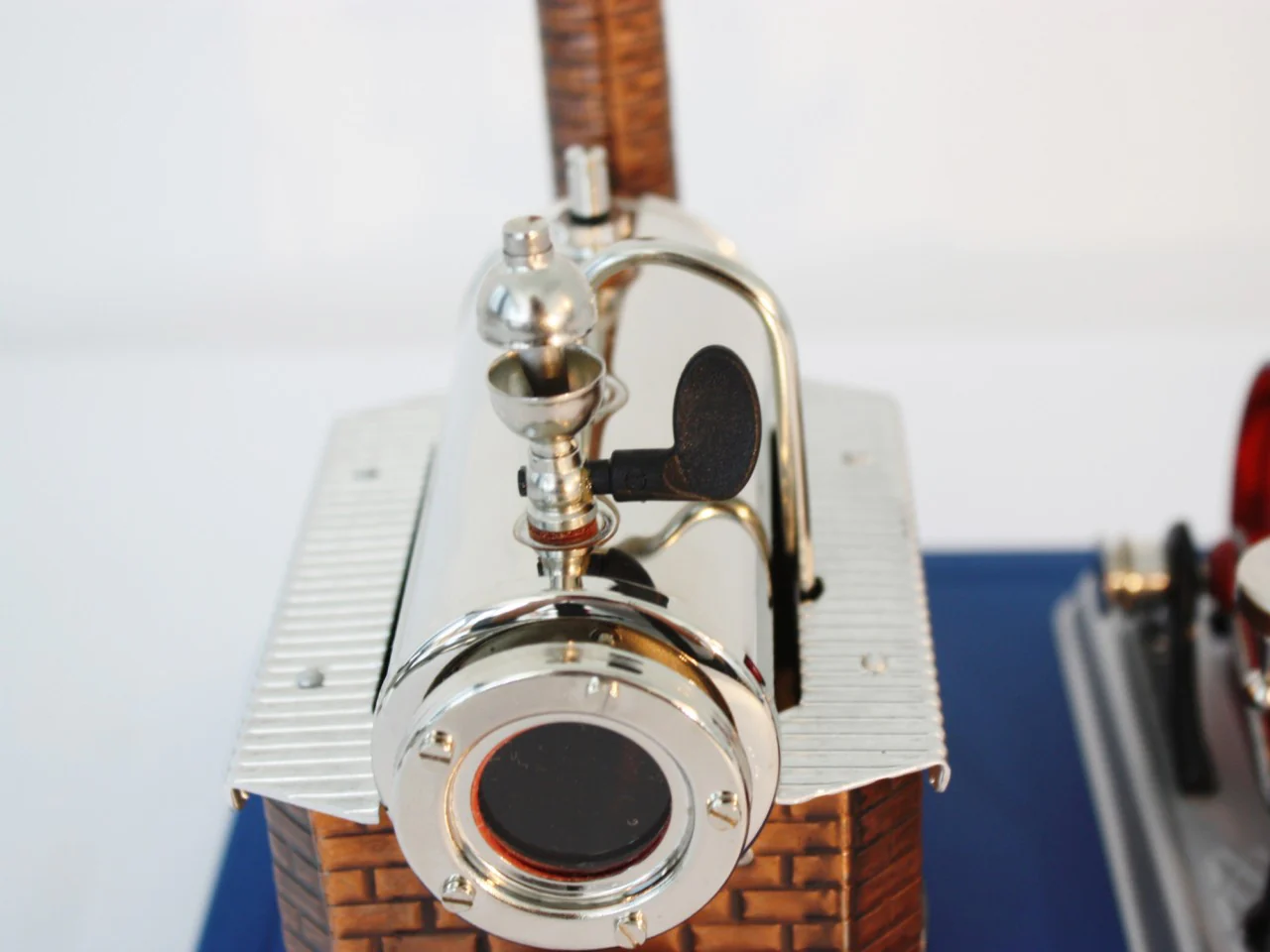

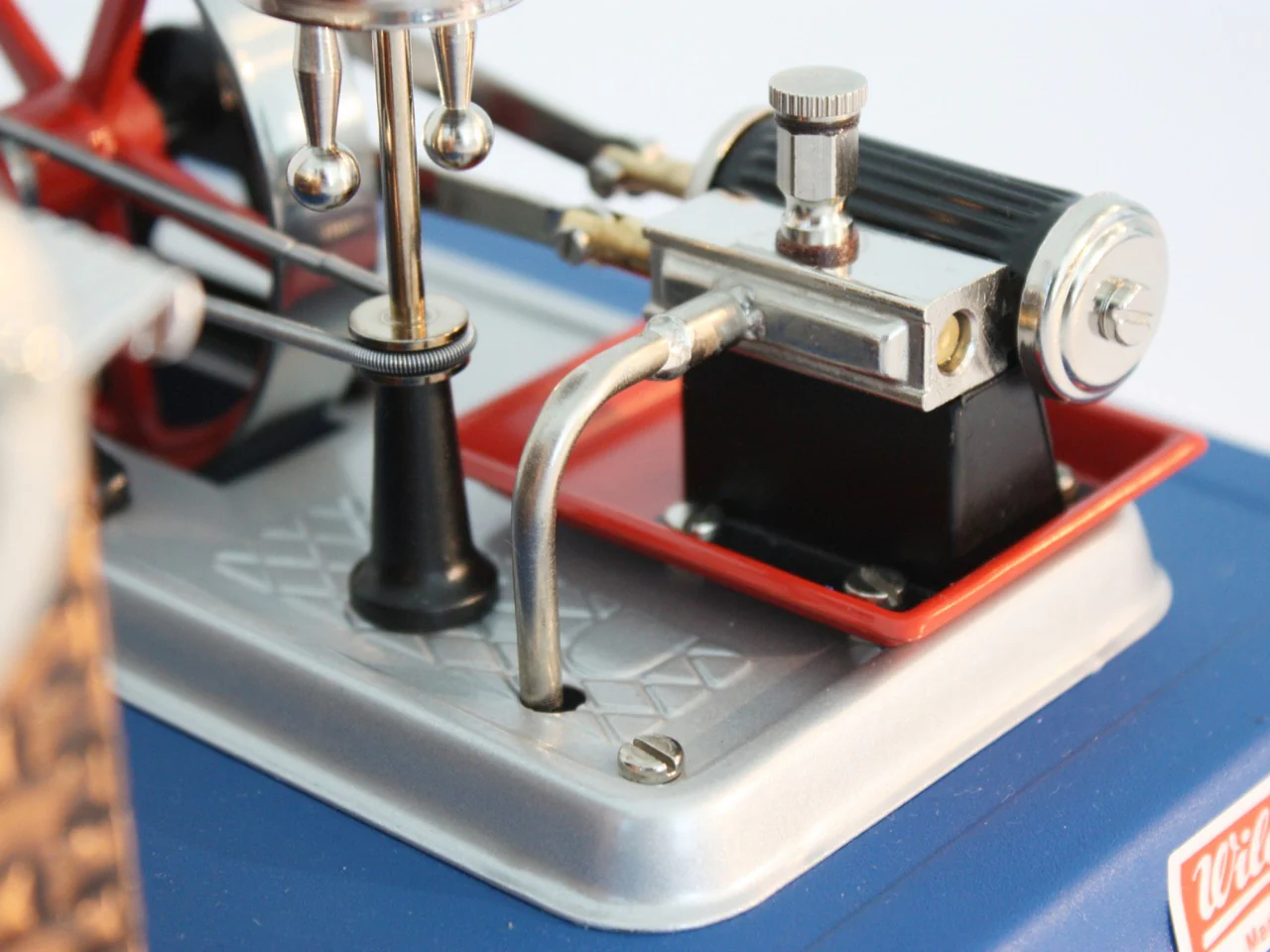

Wilesco D10 Stationary Steam Engine

The Wilesco D10 is one of the most popular model steam engines in the Wilesco range!

The D10 is a live steam model stationary engine featuring a double-acting cylinder. The flywheel can be started in both directions. The chimney of the engine smokes realistically and it has a dome whistle.

Features

• Boiler length: 115 mm, Ø 45 mm
• Forward and reverse direction
• Steam shut-off valve and steam lubricator
• Realistic smoking from chimney
• Blowdown valve for draining boiler
• Made in Germany, GS marked by TÜV Nord

Specification

Boiler Capacity	155cc
Fuel	Wilesco Fuel Gel
Runtime	Approx. 10-15 minutes
Wilesco Power Output Rating	6 - What does this mean?
Kit or Preassembled?	Preassembled
Drive (mobile only)	N/A
Colour Scheme	Blue
Weight	1.2 kg
Flywheel Diameter	70mm
Pressure release valve?	Yes
Whistle?	Yes
Pressure gauge?	No
Water sight glass?	Yes
Dummy Governor?	Yes
Number of Cylinders	One (double-acting)

Included in the box…

1x D10 live steam model steam engine, 1x water funnel, 1x sachet of steam oil, 1x burner tray suitable for gel, 1x Wilesco Fuel Gel 100ml, manual for safe operation (English included).

This product is a detailed live steam model for adult collectors. Not suitable for children under 14 years.
